D.2 Pin Configuration
The ZX-24 series devices have 24 male pins, numbered 1 through 24 in a standard DIP configuration.
Additionally, there are 10 other connections that may be made to the ZX-24 series circuit board for
expansion and other special purposes. In the diagram below, the male pins are represented by filled
circles while the open circles represent solderable connections. The filled square indicates pin 1. The
remaining rectangles on the diagram are stylized representations of some of the components on the
board and are shown for orientation purposes only. Pins 1 to 24 are referred to as the standard pins
while the remaining connections are referred to as the expansion pins.

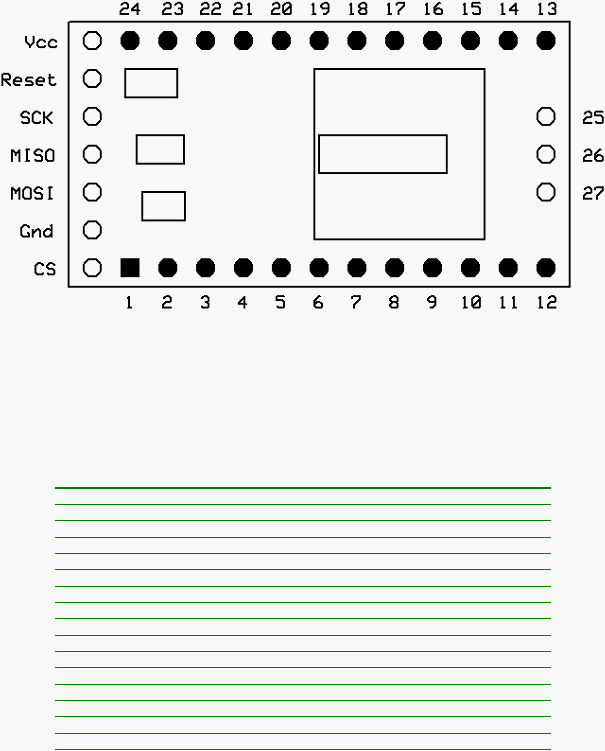

ZX-24 Series Pin Configuration
D.2.1 Standard Pins
The table below summarizes the functions of the standard ZX-24 series pins. A detailed description of
each pin is given following the table. Note that several of the external pins connect to more than one pin
of the microcontroller chip. The multiple connections allow such pins to serve more than one function.
See the descriptions below and the Atmel documentation for more information.
Standard ZX-24 Series Pins
Pin
ATmega
ATxmega
1
Serial Output
Serial Output
2
Serial Input
Serial Input
3
ATN
ATN
4
Ground (common with pin 22)
Ground (common with pin 22)
5
Port C, bit 7 and Port B, bit 1
Port C, bit 7
6
Port C, bit 6 and Port D, bit 2
Port C, bit 6
7
Port C, bit 5
Port C, bit 5 and Port B, bit 0
8
Port C, bit 4
Port C, bit 4 and Port B, bit 2
9
Port C, bit 3
Port C, bit 3 and Port B, bit 3
10
Port C, bit 2
Port C, bit 2
11
Port C, bit 1 and Port D, bit 3
Port C, bit 1
12
Port C, bit 0 and Port D, bit 6
Port C, bit 0
13
Port A, bit 7
Port A, bit 7
14
Port A, bit 6
Port A, bit 6
15
Port A, bit 5
Port A, bit 5
16
Port A, bit 4
Port A, bit 4
 |
 |
 |
